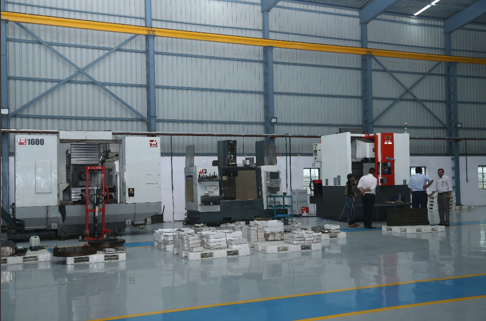

Machining Facilities

R. NO. MACHINERY DETAILES QTY SIZE MODEL SUPPLIERS NAME
1 VMC MACHINE - WITH ROTORY TABLE 1 600 X 400 X 400 (X,Y,Z) 200 ROTORY TABLE 20-TOOL ATC VMC - 640 JYOTI CNC AUTOMATION PVT LTD.
2 VMC MACHINE 1 800 X 500 X 500 (X,Y,Z) 20-TOOL ATC VMC - 850 JYOTI CNC AUTOMATION PVT LTD.
3 VMC MACHINE 1 1000 X 500 X 500 (X,Y,Z) 20-TOOL ATC VMC - 1050 JYOTI CNC AUTOMATION PVT LTD.
4 CNC TURNING CENTER 1 X TRAVEL 200mm Z TRAVEL 500mm DX-200 JYOTI CNC AUTOMATION PVT LTD.
MAX. TURNING DIA 350mm
5 MILLING MACHINE 4 450 X 750 MM TONGCHI TONGCHI
6 HAEVY DUTY LATHE MACHINE 1 DIA.3 FEET LENGTH 18 FEET - INDIAN
7 SHAPPING MACHINE 1 24" INCH SAGAR JIVAN ENGINEERING (LUDHIANA)
8 PENTOGRAPH (2D) 1 400 mm KELDEC SCALE INDIA
9 SINGLE LIP CUTTER GRINDER 1 10 mm DG-1 QUO-TEC
10 TOOL AND CUTTER GRINDER 1 300 mm - BATLIBOY
11 HACKSAW MACHINE 1 18" - DHIREN ENGINEERING
12 HACKSAW MACHINE 1 14" - DIPKALA
13 BENCH GRINDER (PIPE TYPE) 2 0.75 H.P. - RACO
14 DRILL MACHINE 12MM 1 12MM  - EAGLE
15 DRILL MACHINE 20MM 3 20MM - DYNAMIC ENGG. & SKP ENGG
16 DRILL MACHINE 25MM 2 25MM - NAVDEEP ENGG. & DECENT ENGG.
17 HORIZONTAL DRILL MACHINE 1 12MM  - SELF FEBRICATED
18 LIGHT DUTY LATHE MACHINE 4 4' 6" INCH - ANIL ENGG., GMT, SAYONA
19 LIGHT DUTY LATHE MACHINE 1 3' 6" INCH - SAMSUN
20 LIGHT DUTY LATHE MACHINE 1 2' 6" INCH - DIGVIJAY
21 MEDIUM DUTY LATHE MACHINE 1 5' 6" INCH - GMT ENGG.
22 TRAUB 12 25 MM   SWEDEN
23 SLIDING HEAD 5 38 MM   SWEDEN
24 CENTERLESS GRINDER 2 65 MM   INDIAN
25 CYLINDICAL GRINDER 4 UPTO 2 METER   SMITHSON
26 SURFACE GRINDER 2 1.5 METER   GMT ENGG.
27 HOBBING 5 500 MM   HOBBER
28 GEAR SHAPER 4 200 MM   USA
29 THREAD ROLLING 2 50 MM   INDIAN
30 UNIVERSAL MILLIMG 2 450 X 750 MM   INDIAN
31 ELECTRIC WELDING MACHINE 2 - - JACKSON
32 AIR COMPRESSOR HEAVY 2 5.5 x 3 x 4 - INDO AIR
33 AIR COMPRESSOR LIGHT 3 - - NB ENGG.
34 THREAD DRILL 1 6mm - PRABHAT ENGG.


Tolerence
Largest dimension in.
Required machining allowance
mm
Note: A minimum of 0.25 in. RMA
over up to and including Required machining allowance grade
E F G H J K
- 1.6 0.016 0.020 0.020 0.028 0.040 0.055
1.6 2.5 0.016 0.020 0.028 0.040 0.055 0.080
2.5 4 0.028 0.040 0.055 0.080 0.110 0.160
6 10 0.055 0.080 0.110 0.160 0.220 0.320
10 16 0.070 0.100 0.140 0.200 0.280 0.400
16 25 0.087 0.120 0.160 0.240 0.360 0.480
25 40 0.100 0.140 0.200 0.280 0.400 0.560
40 60 0.110 0.160 0.220 0.310 0.430 0.630
60 100 0.130 0.180 0.240 0.350 0.510 0.710
100 160 0.140 0.200 0.280 0.390 0.550 0.790
160 250 0.160 0.220 0.310 0.430 0.630 0.870
250 400 0.180 0.240 0.350 0.470 0.670 0.940
